Laser Cutter Guide

Import Bitmap Files

The laser cutter can raster images from bitmap files.

  • Laser Cut imports the following bitmap file formats
    • BMP, JPG, GIF, PNG, TIF, TGA, PCX

The software can only set engrave (raster) cuts for bitmaps; it needs vector drawings to set other cut types.

Import Vector Files

Use vector files to set cut lines and mark engrave areas.

  • Laser Cut imports following vector file formats
    • DXF (AutoCAD)
    • AI (Adobe Illustrator 10 preferred)
    • PLT (Plotter file)
    • TST, NC
    • ECP files – this is the native format of Laser Cut

By default the software automatically selects all embedded vectors on file import.

Using Lasercut Software

Add intro here.

Associate Vectors Sets to Color Layers

If you want to order your cuts or make more than one type of cut, you need to put your vectors into layers

  • Select all the vectors for a given layer
  • Select a color for the layer
  • Repeat selecting vectors and defining layers until all vectors are within a layer

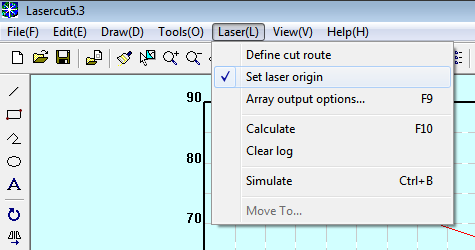

SetLaserOrigin
